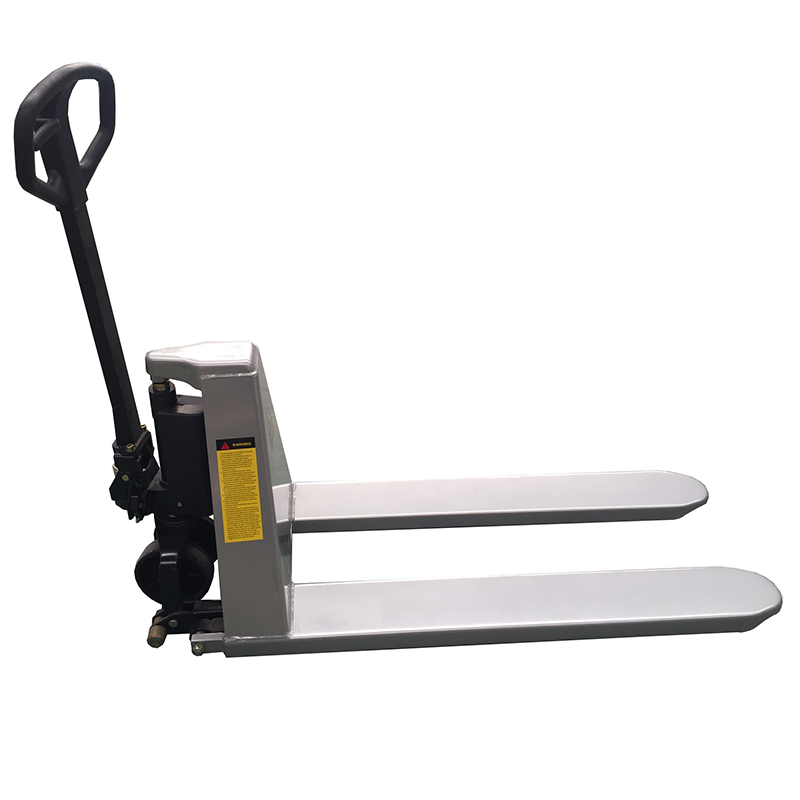

High lift hand pallet jacks series
Zoomsun ZMHL high lift pallet truck also called scissor lift pallet jack,with capacity 1000kgs and 1500kgs,single Cylinder and double Cylinder model,maximum fork lift height is 800mm.Due to the scissor action, this unit is only work for open bottom pallets or skids.
There's zoomsun ZMHL high lift pallet truck series ,designed to keep you move quick,move easy!
Why Choose the ZMHL high lift pallet truck series ?
● Strong pallet scissor structure
● Ergonomic handle with comfortable grip and three position control lever
● Good quality hydraulic pump,extremely easy to pump and light weigh
● Heavy duty design,1000kgs/1500kgs
● Powered coating painting,normal red,yellow and other special colors customization is acceptable.
● Best after-sale service,1 year complete hand pallet truck warranty and 2 years free spare parts provide.
● Original Chinese hand pallet jack manufacturer with good quality
ZMHL high lift pallet truck series help operators to load cargoes from one pallet to another work station or for pallet filling tasks. Scissors pallet trucks are for lifting pallets on the spot like a raised working platform, bringing the pallet to an ergonomic working height. So they can not pick up pallets with bottom boards that would run under the forks. These trucks are designed for rigorous every-day use pushing and pulling pallets in a wide range of industries. zoomsun scissor lift pallet trucks conform to the latest applicable health and safety regulations and can help to reduce the chances of a back strain or injury.
Product Specifications
| Descriptiom/Model No. | HLD10 | HLD15 | ||
| Pump type | Double cylinder hydraulic pump | Double cylinder hydraulic pump | ||
| Standard | Power Type | Manual | Manual | |
| Rated Capacity | kg | 1000 | 1500 | |
| Wheels | Wheel Type-Front/Rear | Nylon/Pu | Nylon/Pu | |
| Front Wheel | mm | 75*70 | 75*70 | |
| Drive wheel | mm | 180*50 | 180*50 | |
| Dimension | Mini lift height | mm | 85 | 85 |
| Max lift height | mm | 800 | 800 | |
| Fork width | mm | 680/540 | 680/540 | |
| Fork length | mm | 1150 | 1150 | |
