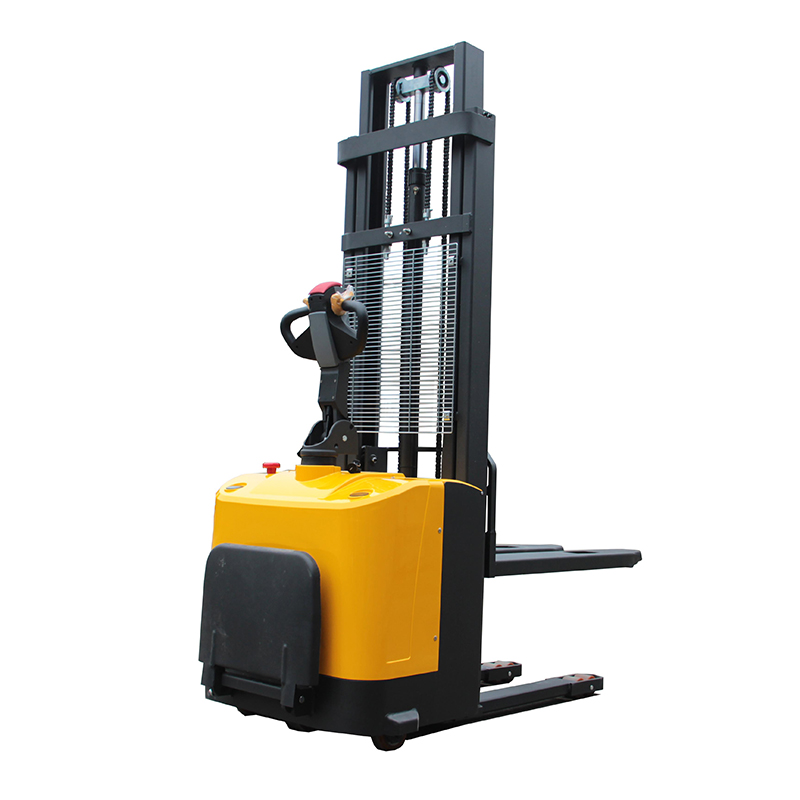

CDD15E Electric Walkie Stacker
Zoomsun CDD15E electric walkie stacker comes in 5 models,which have the ability to lift loads of up to 1500kg from 1600mm to 3500mm.The compact and light design is suitable for a variety of low duty applications in warehouses.Small turning radius widely used in small warehouse and super market.Suit for low level stacking and short distance transportation.Back cover is integrated type design ,easy to assemble and maintain.
Why Choose the CDD15E electric walkie stacker?
● Fully electric load with 1500kg capacity.Ideal solution for low duty applications.
● With Automatic lifting, walking, lowering and turning of heavy pallets.
● Strong torsion-resistant steel construction and reinforcement under pallet truck forks.
● Easy access entry and exit with polyurethane tires, which ensures smooth running.
● Ergonomic handle,Easy and simple to operate so that any staff can operate the machine.
● Lightweight and compact design suitable for working in smaller space areas.
● Electromagnetic braking offers better riding control and safety.
● Easy to dismantle and assemble, hence very convenient to maintain.
● 8 Hours Battery Charing Time, 4 Hours Working Time.
● Efficient and energy-saving power unit.
● Powerful lead-acid batteries 2X12V 135Ah,with built in charger easy to access to power supply.and auto cut off features to prevent overcharging.
● Battery discharge indicator with automatic lift cut-off function for higher battery life
● Curtis (US Brand) Controller.
Zoomsun CDD15E electric pallet stackers are a type of material handling equipment that is used to move and stack pallets. They are electric-powered and can be operated by a single person. Pallet stackers are available in a variety of sizes and configurations, depending on the specific needs of the user. electric pallet stackers can be used in a variety of settings, including warehouses, manufacturing plants, and retail stores.The stacker is designed to withstand tough environments and ensure maximum safety while transporting products. Its steel chassis, thick apron, corrosion-resistant powder coat finish, fixed leg and forks, and mesh screen front end provide optimal stability for laden and unladen respectively
Product Specifications
| 1.2 | Model | CDD1516E | CDD1520E | CDD1525E | CDD1530E | CDD1535E | |
| 1.3 | Power type | Battery(DC) | |||||
| 1.4 | Driving type | Standing | |||||
| 1.5 | Rated load capacity | Q(kg) | 1500 | ||||
| 1.6 | Load center | C(mm) | 500 | ||||
| 1.7 | Wheelbase | y(mm) | 1300 | ||||
| 3.1 | wheel type | PU | |||||
| 3.2 | Load wheel size | mm | Φ80×70 | ||||
| 3.3 | Drive wheel size | mm | Φ210×70 | ||||
| 3.4 | Stabilizing wheel size | mm | Φ115×55 | ||||
| 3.5 | Number of wheels,front/rear(x=drive wheel) | 4/1x+2 | |||||
| 4.1 | Mast closed height | h1(mm) | 2080 | 1580 | 1830 | 2080 | 2280 |
| 4.2 | Lift height | h3(mm) | 1600 | 2000 | 2500 | 3000 | 3500 |
| 4.3 | Mast extended height with load-backrest | h4(mm) | 2080 | 2580 | 3080 | 3580 | 4080 |
| 4.4 | Minimum height of fork | h13(mm) | 90 | ||||
| 4.5 | Overall length | l1(mm) | 2020 | ||||
| 4.6 | Overall width | b1(mm) | 800 | ||||
| 4.7 | Fork size | l/e/s(mm) | 1150/160/60 | ||||
| 4.8 | Fork outside width | b5(mm) | 550/680 | ||||
| 4.9 | Mast ground clearance | m1(mm) | 90 | ||||
| 4.10 | Aisle width for pallet 1000x1200mm, lengthways | Ast(mm) | 2850 | ||||
| 4.11 | Aisle width for pallet 800x1200mm, lengthways | Ast(mm) | 2770 | ||||
| 4.12 | Turning radius | Wa(mm) | 1768 | ||||
| 5.1 | Driving speed, laden/unladen | km/h | 3.5/4.5 | ||||
| 5.2 | Lifting speed, laden/unladen | mm/s | 80/100 | ||||
| 5.3 | Lowering speed, laden/unladen | mm/s | 150/120 | ||||
| 5.4 | Maximum climbing ability, laden/unladen | %(tanθ ) | 3/6 | ||||
| 5.5 | Braking method | Electromagnetic | |||||
| 6.1 | Drive motor | kw | 0.75 | ||||
| 6.2 | Lift motor | kw | 2.2 | ||||
| 6.3 | Battery, voltage/rated capacity | V/Ah | 2×12V/135Ah | ||||
| 6.4 | Battery weight | kg | 69 | ||||
| 6.5 | Steering system | Mechanical steering | |||||
